Automate Playbook Will Fail If The Trigger Is Set For External Alert Data, But the Playbook Is Configured For Threat Data – Red Canary Support

Issue

We have an Automate Trigger setup to fire whenever a specific type of External Alert comes in. For example, if a USB device has been used in our environment. However, we have not been getting any alerts from the Playbook.

Environment

Red Canary Automate

Resolution

When your Automate Trigger is set to execute when an External Alert comes in, then your Playbook can only be configured with the "$ExternalAlert" variables. If "$Detection" variables are used, the Playbook may fail to execute, or the variables will be sent as plain text.

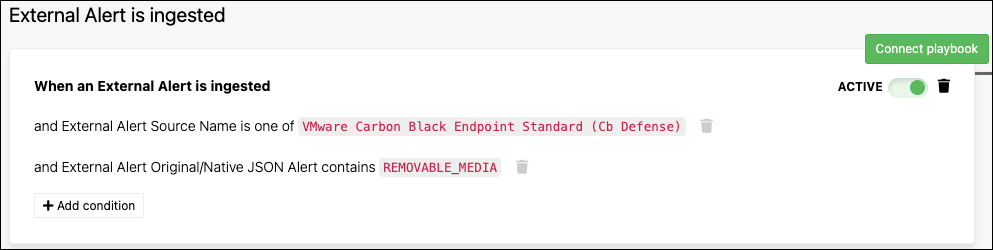

Example of Trigger set to execute based on "External Alert" data

External Alert Playbook variables

ExternalAlert

$ExternalAlert.analysis_team
$ExternalAlert.external_alert_source_alert_identifier
$ExternalAlert.external_alert_source_alert_url
$ExternalAlert.native_email_raw
$ExternalAlert.native_json_raw(supports JSON interpolation)
$ExternalAlert.reported_classification
$ExternalAlert.reported_severity
$ExternalAlert.risk_score
$ExternalAlert.status_and_state
$ExternalAlert.url

ExternalAlertSource

$ExternalAlertSource.display_category
$ExternalAlertSource.name

ExternalAlertSourcePlatform

$ExternalAlertSourcePlatform.display_category
$ExternalAlertSourcePlatform.display_name

In some cases, depending on the fidelity of the External Alert data, you may also be able to use some of the Endpoint specific variables in your Playbook. However, this will need to be thoroughly tested.

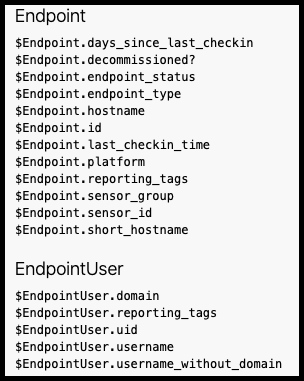

Endpoint specific Playbook variables

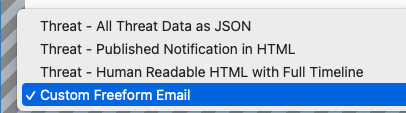

If you are using the Email notification Playbook, then you will also need to make sure your "Template" setting is configured to use the "Custom Freeform Email" setting. If you choose any of the "Threat" Template settings, the Playbook will not work.

Cause

This behavior occurs when the Automate Playbook Trigger is set to fire based on External Alert data, but the Playbook is configured to execute based on threat data. Keep in mind: External Alert data is not the same as threat data. In Red Canary Alert data = External Alerts (Generated from Alert data from all of your 3rd Party devices like firewalls), and Threats = Confirmed Threats (Generated from raw Event data that was received from your EDR Sensors). These are two completely different things.
